0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light

0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light
0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light

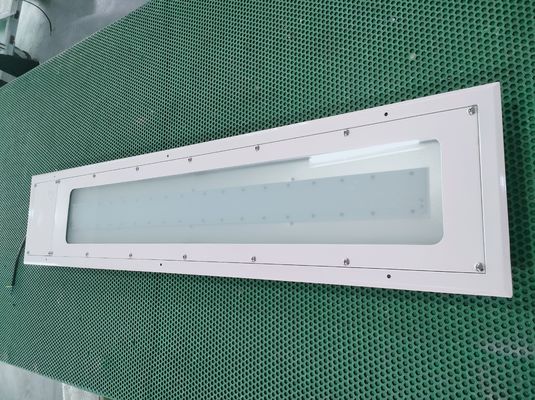

Büyük resim :  0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light

Ürün ayrıntıları:
Menşe yeri: Jiangsu, Çin
Marka adı: Crown Extra
Sertifika: ATEX,CE,ROHS,CNEX,ISO9001
Model numarası: Bhy
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: USD40-60per pc
Ambalaj bilgileri: Karton 、 Ahşap Kutu 、 Palet
Teslim süresi: 15 iş günü
Ödeme koşulları: T/T
Yetenek temini: 50000pcs/ay

0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light

Açıklama
Ürün adı: Patlamaya Dayanıklı temiz Aydınlatma Armatürleri Model: Bpy
Güç: 18/36/54/72W Işın açısı: 120-140 °
Yeterlik: 100lm/w CRI: RA: ≥70
Sertifikalı: CNEX, eski, IP66, IEC, IECEX Montaj: Tavan, Gömülü
CCT: 5500-6500K, diğer renk sıcaklıkları özelleştirilebilir

0.6M 1.2M 100LM/W Linear led explosion proof 36w industrial lamp Safe T6 LED steel Explosion proof linear light





BHY Series

0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 0

Features:

1. SMC mold pressure shell, high strength, impact resistance, corrossion proof. Lampshade is formed by polycarbonate injection molding, high transmittance, strong ability to withstand shocks.
2. Lamp is adopts curve sealed structure, high waterproof and dust proof class.
3. Lightweight and slim line construction
4. The emergency device can be equipped at the request of users, when the emergy power supply breaks, the fluorescent with emergency unit can switch to emergency lighting state automatically




Applications


A wide range of hazardous areas where ignitable vapors, dust, moisture and corrosive elements are present
Areas requiring frequent on-and-off of lights or power cycling- no warm up time required
Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations




Standard Materials
Housing: Steel plate, Stainless steel optional
Exterior: Stainless steel
Globe: Polycarbonate, anti-glare
Gasket: Silicon rubber




Certifications
ATEX
CNEX
CE
RoHS
ISO9001



Electrical Data
Ex Marking Ex d e IIC T6
Classification Class I, Division 1 and 2,Group A,B,C,D; ZONE1 ZONE21 AND 22
IP Degree IP66
Corrosion Resistant WF2
Input Voltage 220VAC, 50/60 Hz
Battery Back-up Optional, Emergency time>90min;Charging time:24h;Starting time:0.3s
Power Factor 0.98
Conduit Entries G 3/4"
Mounting Styles Pendant; Ceiling; Chain; Embedded; Wall; Stanchion




Ordering Information

Model No. BHY BHY-Tri tube
T8 Fluorescent tube 2*40W 3*40W
T5 Fluorescent tube 2*28W 3*28W
LED tube 2*18W 3*18W


0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 1

Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

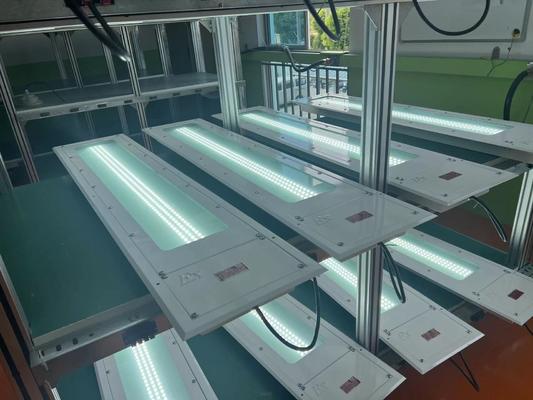

0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 2

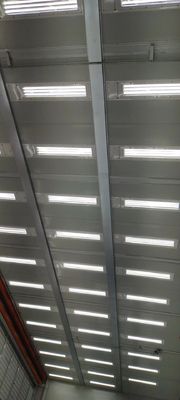

0.6M 1.2M 100LM/W Linear Led Explosion Proof 36w Industrial Lamp Safe T6 LED Steel Explosion Proof Linear Light 3
