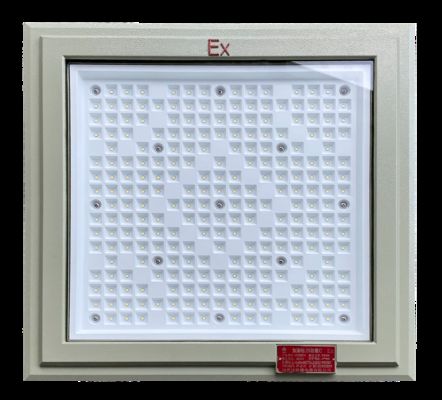

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty

Sertifika
Çin crown extra lighting co. ltd Sertifikalar
Çin crown extra lighting co. ltd Sertifikalar
Ben sohbet şimdi

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty
ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty

Büyük resim :  ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty

Ürün ayrıntıları:
Menşe yeri: Jiangsu, Çin
Marka adı: Crown Extra
Sertifika: ATEX,CE,ROHS,CNEX,ISO9001
Model numarası: GYD980
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Fiyat: USD147-159per pc
Ambalaj bilgileri: Karton 、 Ahşap Kutu 、 Palet
Teslim süresi: 15 iş günü
Ödeme koşulları: T/T
Yetenek temini: 50000pcs/ay

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty

Açıklama
Ürün adı: Patlamaya Dayanıklı Benzin İstasyonu Işığı Model: GYD980
Güç: 100-250W Gerilim: AC 100-277V, 50Hz/60Hz: 24/36VDC
Yeterlik: 130lm/w CRI: RA: ≥80
CCT: 3000/4000/5000/5700K Sertifikalı: CNEX, eski, IP66, IEC, IECEX
Montaj: Tavan, Gömülü, Braket

ATEX 18*18 inch square shape explosion proof light 100w 130lm/w gas station light with five years warranty

GYD980 Series

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty 0

Features:

1. Zone 2, Zone 21&22
2. Instant on crisp white light output
3. High efficiency drivers and LEDs provide Low cost operation in harsh andheavyindustrial applications

4. Isolated LED compartment reducestemperature within driver housing





Applications

Typical applications include:
Oil and gas industries
Chemical, petrochemical
Pharmaceutical industries
Pulp and Paper
Waste and sewage treatment
Power Generation
Other high humidity, high dust, high temperature, vapor locations





Standard Materials
Housing: Die-casting aluminum
Exterior: Stainless steel
Globe: Tempered glass
Gasket: Silicon rubber





Certifications
ATEX
CNEX
CE
RoHS
ISO9001





ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty 1





For use in Zone2 & Zone 21, 22
Rated voltage 100-277VAC, 50-60Hz
Power factor >0.95
THD <20%
Power consumption [W] 100-200w
Colour rendering [CRI] 80 (±2)
Colour temperature [K] 5500-5700
Luminaire efficiency[Lm/W] 125-130LPW
Beam angle 120°
Degree of protection IP66
Cable entry G 3/4”
Weight [kg] 10.85
Terminal ≤2.5 mm²
Mounting Styles Ceiling



GYD980 Series



ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty 2

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty 3

Installation Instructions:
Before installation, check voltage, power and other parameters carefully and
make installation preparations arrordingly to layout circuit.
1. organize firstly supporting spare parts and accessories
2. do shut off power before installation
3. the loading capacity of the ceilingfixed item where the lamp is installed should be the same as the lamp weight
4. do power-on test to make sure the lamp can be lighted
5. make sure the lamp is installed firmly, turn on the light finally
Company information:
Crown Extra Lighting Co., Ltd. is a comprehensive enterprise integrating R&D, production, sales and service.
The company is located in Changzhou, known as the "Dragon City" in the Yangtze River
Delta of China. The company is committed to becoming a provider of green, environmentally friendly,
energy-saving, and leading industrial lighting solutions, providing high-quality lighting products for
petroleum, petrochemical, electric power, metallurgy, railways, aerospace, military, public security,
fire fighting, ships, roads, pharmaceuticals, etc. And professional technical service programs.
FAQ:
Q1. Can I have a sample order for explosion-proof led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: What kind of payments do you accept?
A:T/T, L/C, Western Union,, MoneyGram, etc..
Q3:What is you main products?
A: Explosion-proof LED light ,explosion-proof box,explosion proof fittings, etc.
Q4: Do you offer guarantee for the products?
A: Yes, we offer 3-5 years warranty to our products.
Q5: What's the MOQ?
A:MOQ is 1 set.

ATEX 18*18 Inch Square Shape Explosion Proof Light 100w 130lm/w Gas Station Light With Five Years Warranty 4
